How to choose the right aluminum coil thickness

Choosing the right aluminum coil thickness is a critical decision that balances performance, cost, and manufacturability. Selecting the wrong thickness can lead to product failure, increased costs, or manufacturing problems.It depends heavily on the specific application and its requirements.

Step-by-Step Guide to Choosing Aluminum Coil Thickness

Step 1: Define Your Application (What are you making?)

This is the most important question. The end-use dictates almost all other requirements.

Structural: Is it a load-bearing roof panel or a truck body?

Architectural: Is it decorative siding, a sign, or a gutter?

Packaging: Is it a beverage can lid?

Industrial: Is it for HVAC ductwork or heat exchangers?

Step 2: Assess Structural and Performance Requirements

Once you know the application, determine the forces it must withstand.

Load-Bearing Capacity: Will it need to support weight (like snow on a roof) or resist pressure (like wind against a wall)? Thicker coils provide greater strength and stiffness.

Impact and Dent Resistance: Will the product be in a high-traffic area or exposed to potential impacts like hail or gravel? A thicker coil is much more resistant to denting.

Rigidity and Flatness: For large, flat surfaces like architectural panels or signs, thin material can appear wavy or distorted, a phenomenon called "oil canning." A thicker coil provides the necessary rigidity to keep the surface flat and smooth.

Step 3: Consider the Manufacturing Process

How will you turn the coil into a final product?

Bending and Forming: Thinner aluminum is much easier to bend. Thicker material requires more powerful machinery and has a larger minimum bend radius (you can't make as sharp a corner without it cracking).

Stamping and Drawing: Deep-drawing processes (like making a can) require very specific, often thin, and highly formable alloys.

Welding: Thicker materials are generally easier to weld than very thin materials, which can burn through easily.

Step 4: Evaluate the Environmental Conditions

Where will the final product live?

Corrosive Environments: For coastal (salt spray) or industrial (chemical) areas, a thicker material provides a longer service life, as it has more mass to sacrifice to corrosion if the protective coating is ever breached.

UV Exposure and Thermal Cycling: Extreme temperature changes can cause expansion and contraction. While thickness isn't the primary factor here, it contributes to the overall stability of the panel or part.

Step 5: Balance with Cost and Weight

These are often the deciding factors.

Cost: Aluminum is sold by weight. A coil that is twice as thick will cost roughly twice as much for the same surface area. Don't over-specify the thickness if you don't need the extra performance.

Weight: For applications in transportation (trailers, RVs, aircraft) or portable equipment, weight is a critical factor. You must use the thinnest material possible that still meets the safety and durability requirements.

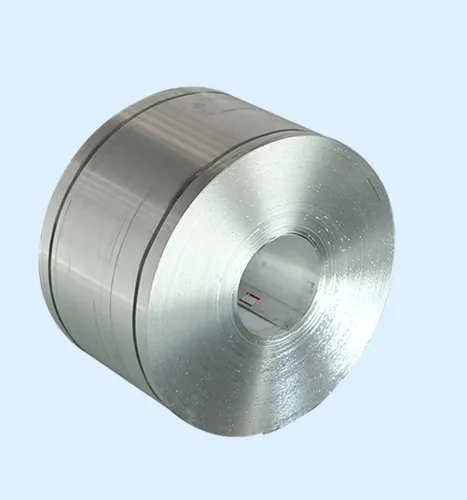

Aluminum Coil Application

1. Application and Intended Use:

Structural Integrity and Load Bearing: If the aluminum coil needs to support weight or withstand significant forces (e.g., in aerospace, automotive, or construction), a thicker coil will be necessary to provide the required strength and rigidity.

Insulation: For insulation purposes, thicker aluminum coils generally offer better insulation performance and durability. Common thicknesses for insulation aluminum coils range from 0.3mm to 1.5mm, with 0.75mm being common.

Corrosion Resistance: While aluminum is inherently corrosion-resistant, thicker material provides a greater barrier, especially in harsh environments (e.g., marine or industrial settings).

Formability and Bending: Thinner coils are generally more malleable and easier to form, stamp, or bend into complex shapes. If your application involves significant bending or shaping, you might opt for a thinner gauge. Alloys like 3xxx and 5xxx series are known for good formability.

Weight Sensitivity: In applications where weight is critical (e.g., aircraft, portable equipment), a thinner coil will be preferred to minimize overall weight.

Heat Transfer: Aluminum's excellent thermal conductivity can be leveraged with specific coil designs (e.g., microchannel coils) to enhance heat transfer, which might influence thickness.

Aesthetics and Surface Finish: The desired appearance of the final product might influence the surface finish, which can be mill, matte, bright, or coated. While not directly related to thickness, the finishing process can impact the overall product.

Specific Industry Standards: Different industries (e.g., construction, automotive) may have specific standards or common thicknesses for aluminum coils. For example, coated aluminum roof coils typically range from 0.6mm to 1.0mm.

2. Mechanical Properties (Alloy and Temper):

Tensile Strength and Yield Strength: Thicker coils generally have higher tensile and yield strength. However, the specific aluminum alloy (e.g., 1000 series, 3000 series, 5000 series, 6000 series) and its temper (e.g., O-temper for soft/annealed, H14 for semi-hard, T4 or T6 for heat-treated) significantly influence strength and ductility. For bending, alloys with a larger difference between yield and tensile strength are often preferred.

Elongation: This indicates how much the material can stretch before breaking. Higher elongation means better formability.

Hardness: Hardness also relates to strength and can affect machining and forming.

3. Cost Considerations:

Material Cost: Thicker aluminum coils generally mean more material, leading to higher costs.

Processing Costs: While not always directly tied to thickness, extremely thin or thick coils might require specialized processing, potentially impacting costs.

Shipping and Logistics: Heavier (thicker) coils will incur higher shipping costs.

4. Manufacturing Process:

Coating Equipment: The thickness of the aluminum coil can be limited by the capabilities of the coating equipment. Standard coating equipment often handles thicknesses between 0.3mm and 1.2mm.

Rolling Processes: Whether the coil undergoes hot or cold rolling affects its final properties and achievable thicknesses.

5. Gauge vs. Millimeters/Inches:

Aluminum coil thickness is often referred to by a "gauge" number. It's important to note that the gauge system for aluminum differs from that of steel or other metals. A lower gauge number indicates a thicker material. Always refer to an aluminum-specific gauge chart to find the corresponding thickness in inches or millimeters.

Practical Guide: Common Thicknesses by Application

Beyond Thickness: Other Critical Factors

Thickness is just one piece of the puzzle. You must also consider:

Alloy: The type of aluminum has a massive impact on its properties.

3003/3105 Series: The workhorse for general sheet metal work like roofing, gutters, and siding. Good formability and corrosion resistance.

5052 Series: Higher strength and excellent for marine environments due to superior corrosion resistance. Less formable than 3xxx series.

6061 Series: A structural alloy, often used in thicker plates. Very strong but less formable when in a hardened temper.

Temper: This refers to the hardness and strength of the aluminum, achieved through work-hardening or heat treatment.

"O" Temper: Annealed (soft). Very easy to form but has low strength.

"H" Tempers (e.g., H14, H18): Strain-hardened. H14 is half-hard, offering a good balance of formability and strength. H18 is full-hard and much stronger but brittle.

Final Recommendation

When in doubt, consult a professional.

Talk to your metal supplier, a fabricator, or a materials engineer. They have seen thousands of applications and can provide invaluable advice based on your specific project. It is always better to get an expert opinion than to risk a product failure.
